| Parc | Secondhand |
| Reference | 008063 |

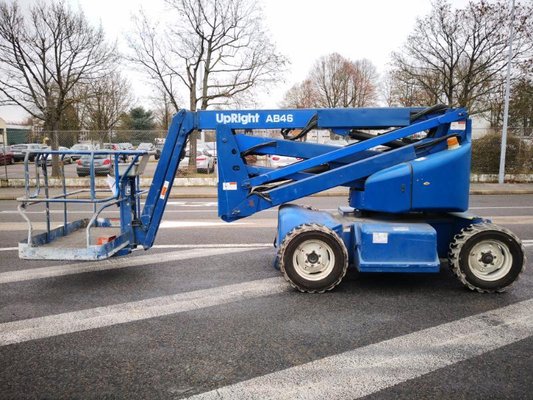

| Make | Upright |
| Model | AB46E |
| Year | 2003 |
| Hours | 1 407 h |
| Power | Electric |
| Working height | 16 m |
| Traction (drive) type | 2 wheel drive |
| Floor height | 14 m |
| Width | 1750 mm |
| Weight | 6486 Kg |
| Warranty |
Sold serviced With updated periodic test 3-month parts guarantee |
| Condition |
max. working height 16.1m 16.1m
max. platform height 14.1m 14.1m
max. working outreach 7.5m 7.5m
jib length 1.5m 1.5m
jib arc 140º 140º
platform capacity (SWL) 227kg 227kg
platform size - outside 1.0m x 1.75m 1.0m x 1.75m
platform rotation 140º 140º
turret rotation 360º non-continuous 360º non-continuous
width A 1.75m 2.0m
stowed height B 2.0m 2.13m
stowed length C 5.43m 5.43m
gross weight 6,486kg 6,650kg
gradeability 17º/30% 22º/40%
inside turning radius 0.60m 0.60m
outside turning radius 3.0m 3.0m
tailswing - stowed 0 0
cycle time to full height 66 secs 66 secs
ground clearance 152mm 330mm
max. drive speed - stowed 5.64km/h 8.5km/h
max. drive speed - elevated 0.8km/h 0.6km/h
tyres high grip poly filled high grip poly filled
power source 8 6V 350 Ah batteries Kubota V1505 Diesel
